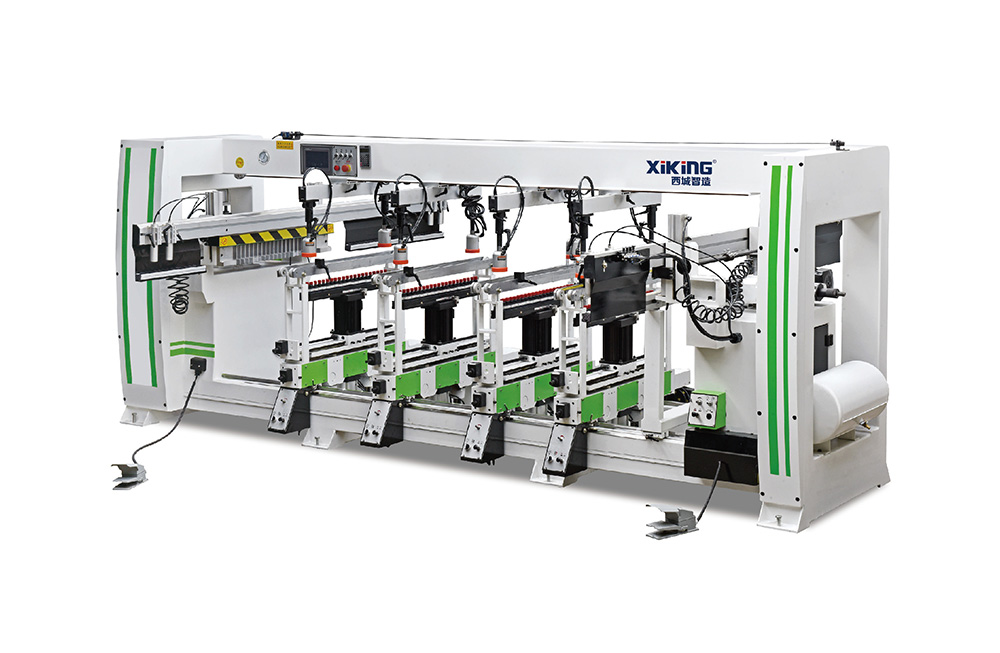

產(chǎn)品中心MZB73216六排多軸木工鉆床
參數(shù)配置
|
最大鉆孔直徑 |
Maximum diameter of holes |
35mm |
|
鉆軸總數(shù) |
Total number of drilling shafts |
126 |
|
最大鉆孔深度 |
Max.drilling depth |
60mm |
|
鉆軸芯之間最小距離 |
Min.center distance between spindle |
32mm |
|
垂直鉆最小加工距離 |
Min.working distance of vertical head |
130mm |
|
垂直鉆最大加工距離 |
Max.working distance of vertical head |
2400mm |
|
適應工件最大尺寸 |
Maximum diameter of pieces to be drilled |
2500x650x140mm |
|
主軸轉(zhuǎn)速 |
Spindle speed |
2840rpm |
|
電機總功率 |
Total power of motor |
1.5kw |
|
適應氣壓 |
Air pressure |
0.6-0.8Mpa |
|
外型尺寸 |
Dimension |
4400x2500x1600mm |
|
機器重量 |
Weight |
2200kg |
|
要求電源電壓 |
Suitable voltage |
380V |
